What is Speaker Driver Displacement?
When designing a custom subwoofer box, it is easy to focus entirely on the dimensions of the wood. But what happens when you drop a massive 20-pound magnet into that carefully calculated air space?
The "Ice Cube in a Glass" Effect

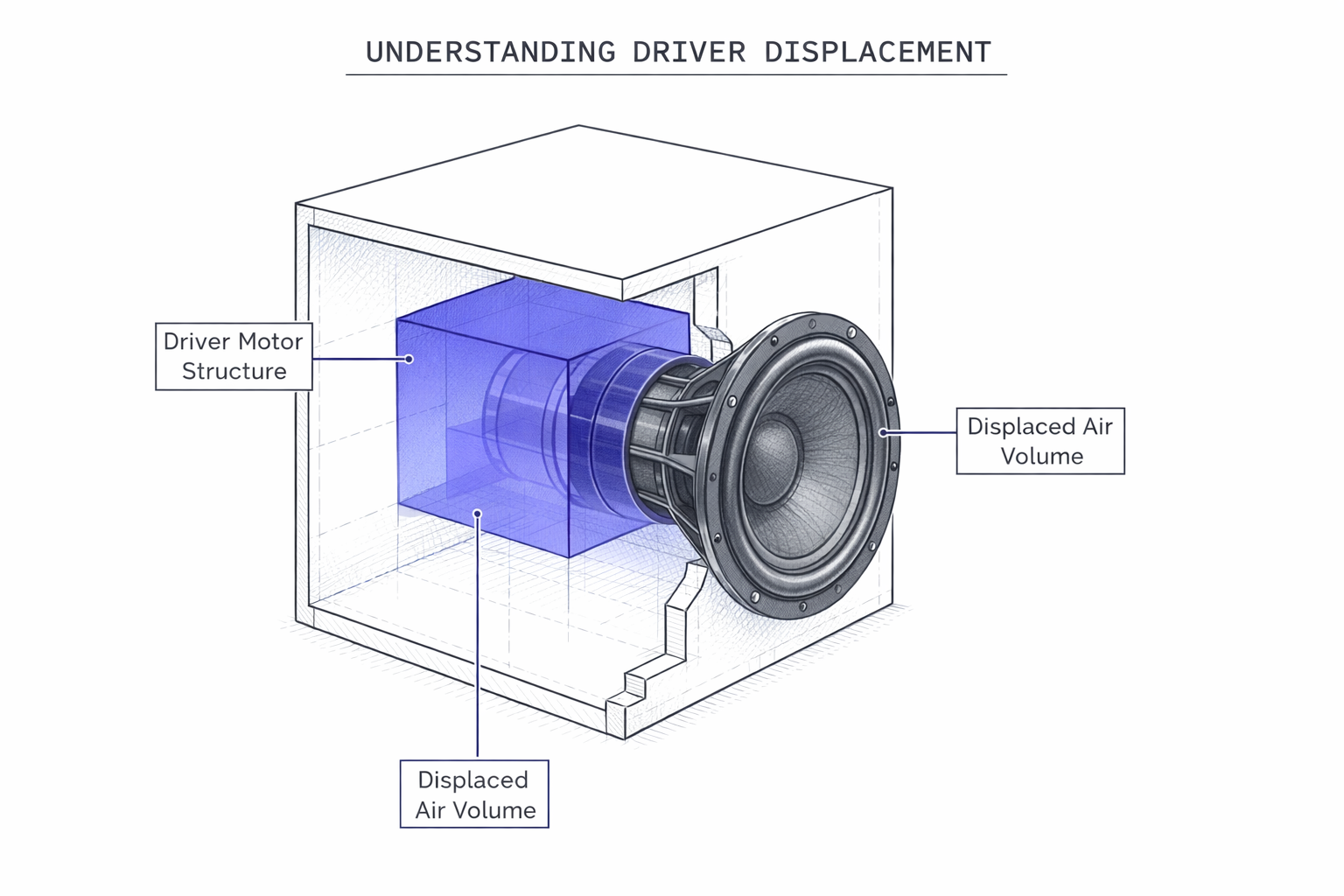

Speaker driver displacement is the physical volume of air that is pushed out of the way by the subwoofer's motor structure (the magnet) and the basket when it is mounted inside the enclosure.
Think of your speaker box as a glass of water. If you fill a glass exactly to the brim (your Gross Volume) and then drop a large ice cube (your subwoofer) into it, the water will overflow. The ice cube has displaced the water. In a sealed wooden box, the air cannot overflow, so the total usable air space inside the box simply shrinks.
Why Ignoring Displacement Ruins Your Sound
Subwoofers are highly sensitive to the amount of air acting as a suspension spring behind them. If you use a subwoofer tuning calculator and determine you need exactly 2.0 cubic feet (56.6 Liters) of Net Volume, your final box must be larger than that.
If your 12-inch subwoofer displaces 0.15 cubic feet of air, and you build a box with a Gross Volume of exactly 2.0 cubic feet, your actual Net Volume will only be 1.85 cubic feet.
The Result of a "Shrunk" Box:
- In a sealed box, a smaller volume raises the system's "Q", leading to a peaky, "boomy" sound instead of a flat response.
- In a ported box, shrinking the internal volume accidentally shifts your port tuning frequency (Fb) higher, robbing you of deep bass extension.
How to Find Your Driver's Displacement

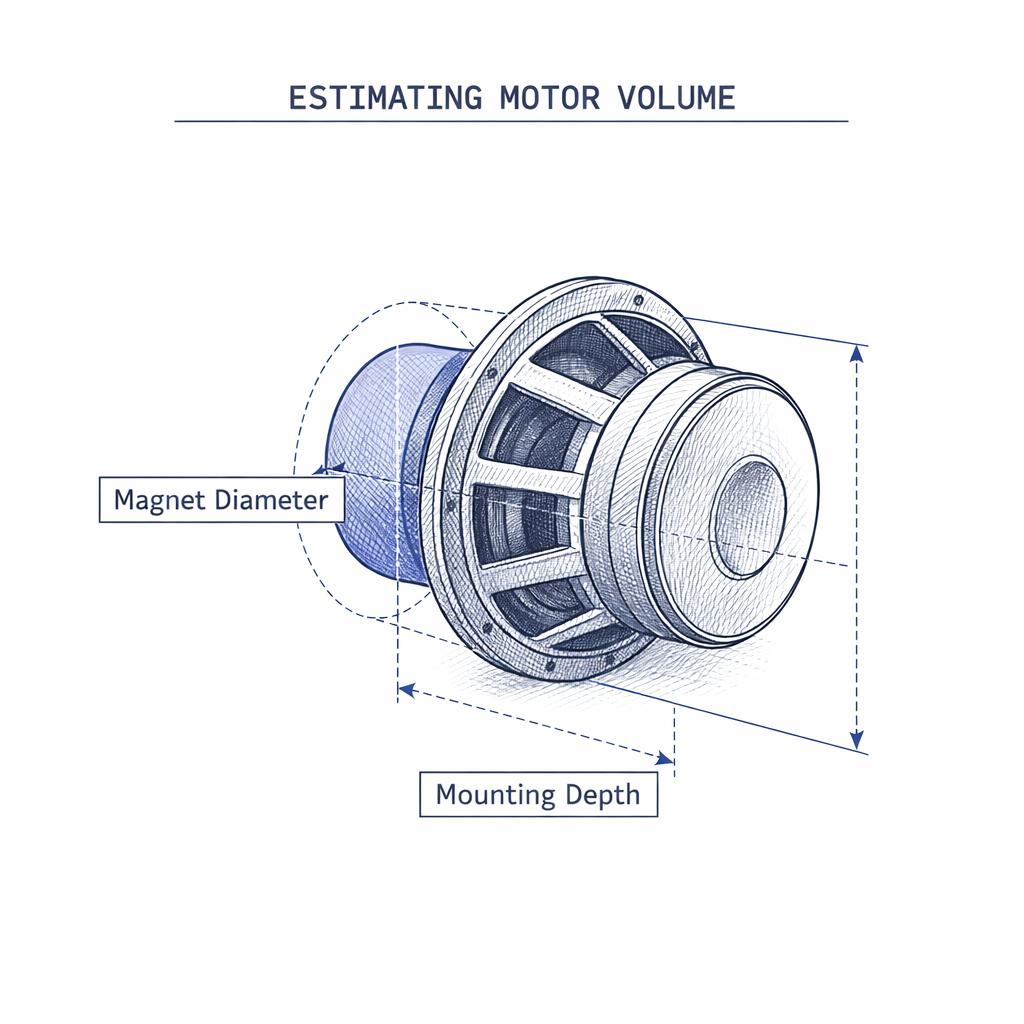

Fortunately, you do not have to measure the geometry of your speaker's magnet yourself. Reputable audio manufacturers (like Dayton Audio, JL Audio, or Sundown) always list the "Driver Displacement" on the official spec sheet. It is usually listed in Liters (e.g., 2.5 L) or Cubic Feet (e.g., 0.09 cu ft).
Note: Do not forget to also account for port displacement and wooden bracing displacement! A large slot port can take up a massive amount of internal air space.
Let Us Do The Heavy Math
Calculating the perfect external wood dimensions while subtracting the driver, port, and bracing displacement can be a headache. Use our free speaker box calculator. Just input your target Net Volume and the driver displacement, and we will output the exact Gross Volume and cut measurements you need.
