Standard Plywood & MDF Sheet Sizes (Global Guide)

The Universal Standard: 4x8 Feet

In North America, the undisputed king of sheet goods is the 4x8 sheet. Whether you are buying standard pine plywood, oak veneer, or melamine, this is the size you will find at almost every hardware store.

• Standard 4x8 Plywood 48 inches × 96 inches

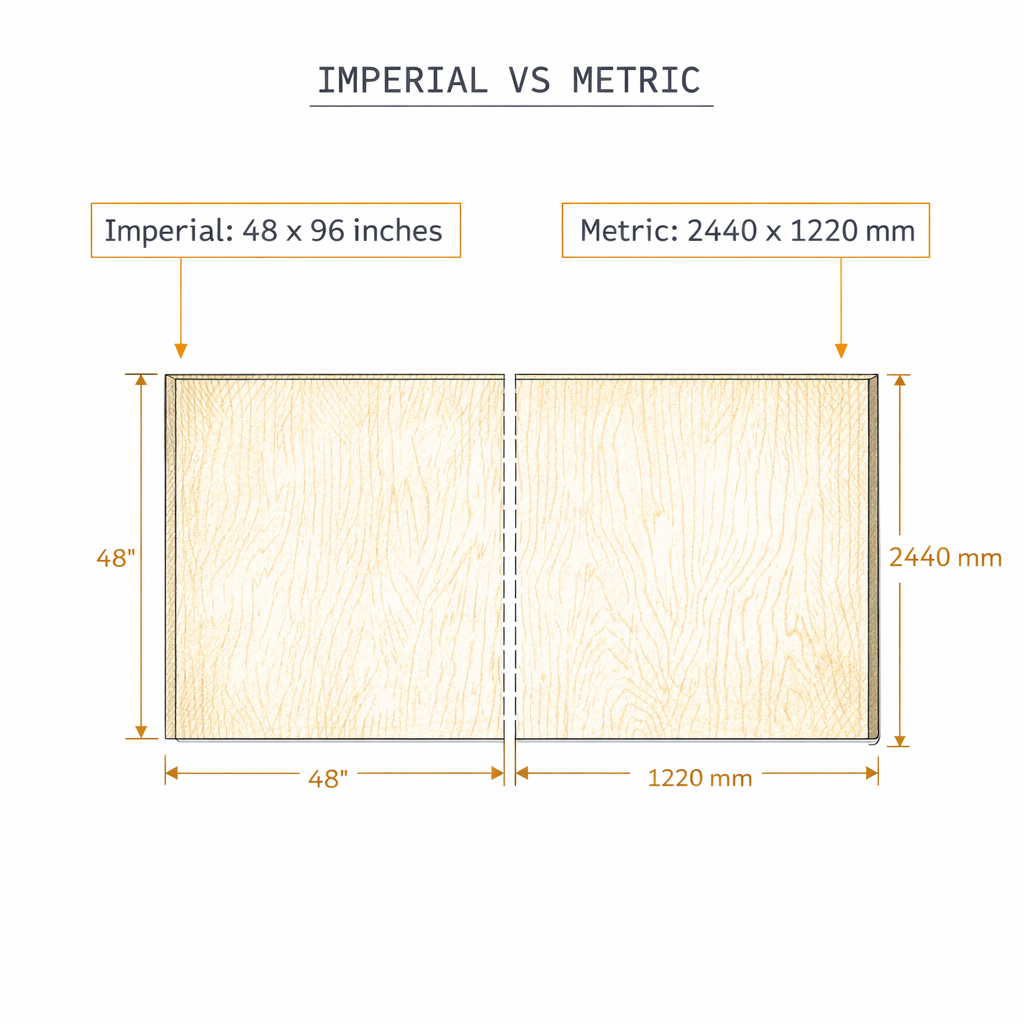

In Europe, Australia, and regions using the metric system, the "4x8" equivalent is slightly different. Because it is manufactured to strict metric standards, a full sheet measures exactly:

• Standard Metric Plywood 1220 mm × 2440 mm

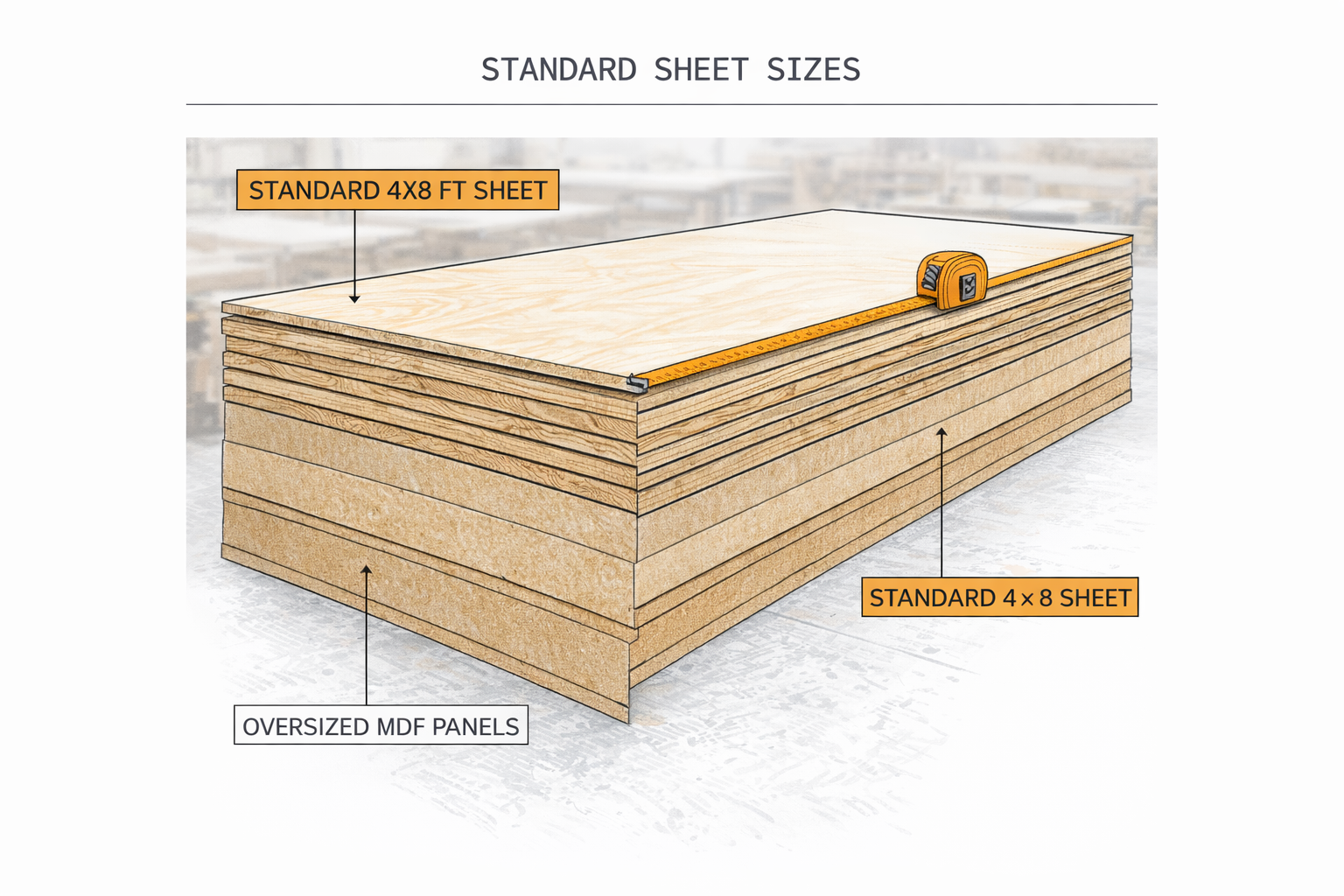

The Secret of "Oversized" MDF

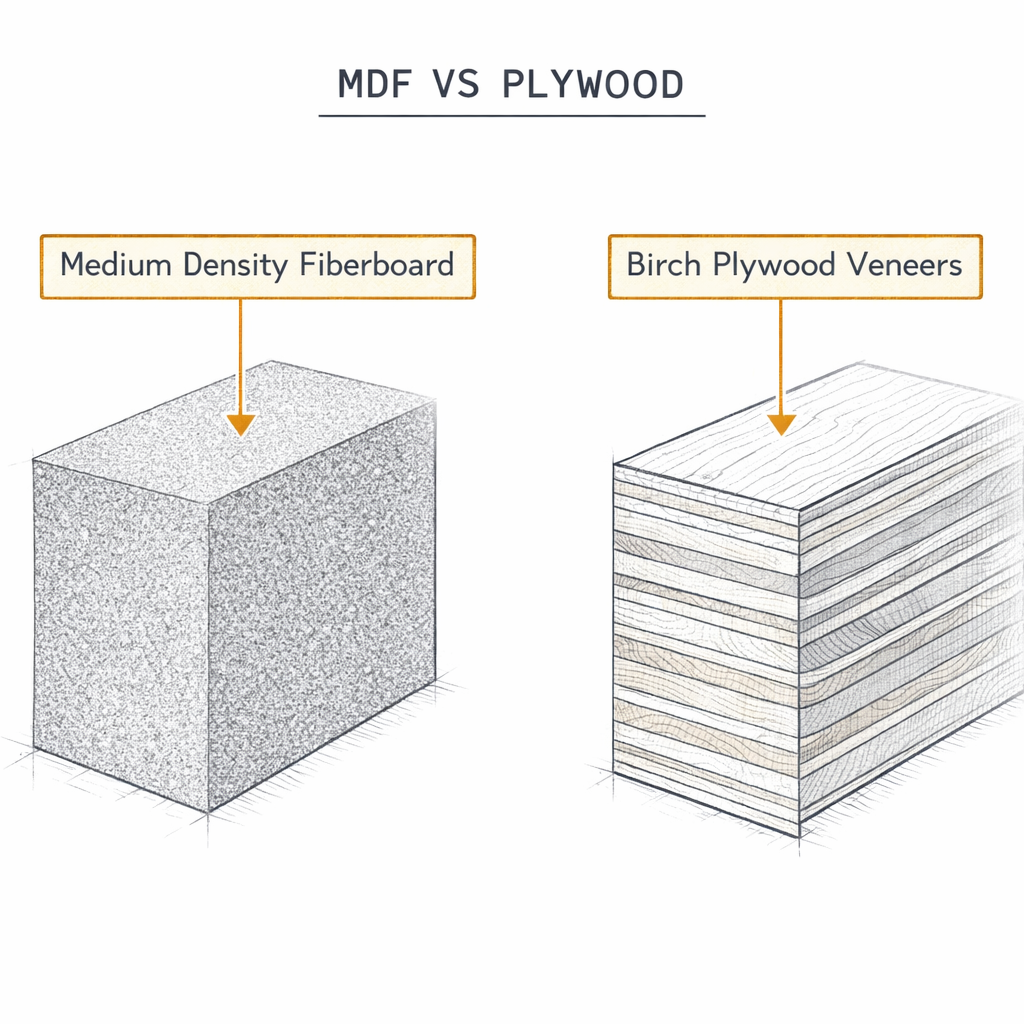

If you are building custom audio enclosures, you are likely using Medium Density Fiberboard (MDF). Many builders are surprised to learn that MDF sheets are intentionally manufactured slightly larger than standard plywood.

MDF is notorious for having damaged, chipped, or crushed edges from shipping and handling. To ensure you still get a full 48" × 96" of usable material, manufacturers cut the sheets to 49 inches × 97 inches (approx. 1245 mm × 2465 mm). This gives you a 1-inch buffer to trim off the factory edges and get a perfectly square board before making your final cuts.

Baltic Birch: The 5x5 Exception

If you are using our speaker box design software to build high-end touring PA speakers or premium home theater subwoofers, you will probably seek out true Baltic Birch plywood.

Authentic Baltic Birch originates from Russia and the Baltic states, and it historically comes in a unique square format rather than a rectangle.

• Standard Baltic Birch (5x5) 60 inches × 60 inches (1525 mm × 1525 mm)

While some suppliers now offer Baltic Birch in 4x8 formats to satisfy the North American market, the 5x5 square remains incredibly common. If you do not account for this shape, your panel layout will be completely wrong.
