How to Tune a Subwoofer Port (Fb): Length, Area, and Velocity
Adding a hole to a wooden box does not automatically make it a ported subwoofer. To get deep, distortion-free bass, that port must be carefully tuned to a specific frequency (Fb) by balancing its area and length.

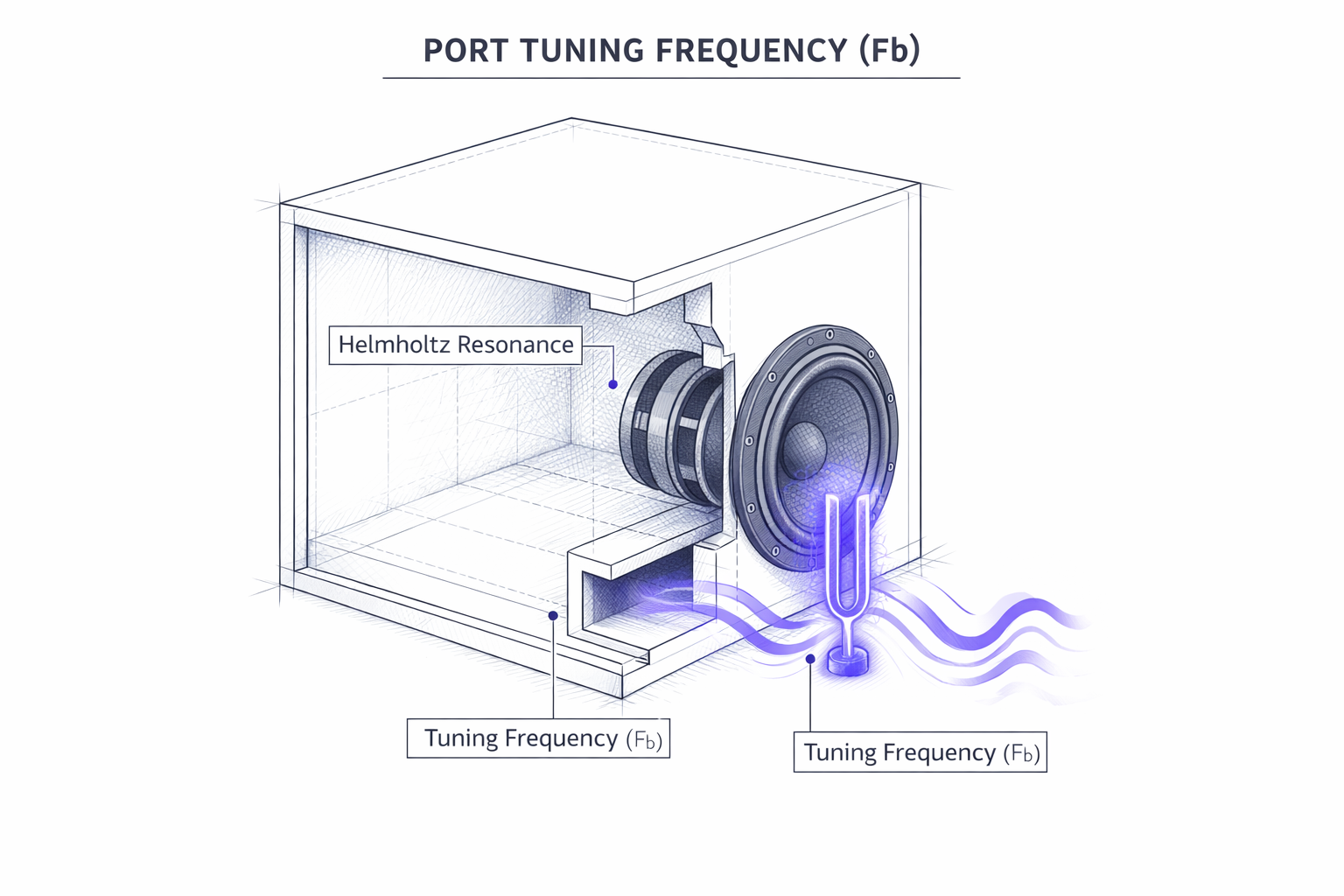

What is Port Tuning Frequency (Fb)?
In a vented enclosure, the air inside the port acts like a solid plug, bouncing back and forth on the "spring" of the air trapped inside the main box. The frequency at which this mass of air resonates most efficiently is called the Tuning Frequency (Fb).
At this exact frequency, the port produces almost all the sound, and the subwoofer cone itself barely moves. This allows a ported box to play significantly louder and deeper than a sealed box of the same size.
The Physics: Diameter vs. Length
Tuning a port is a delicate balancing act between the internal volume of your box, the cross-sectional area of the port (how wide it is), and the length of the port. Here are the golden rules of port physics:
Changing the Box Volume
If you keep the port exactly the same but make the main speaker box larger, the tuning frequency (Fb) drops lower. If you shrink the box, the tuning frequency goes up.

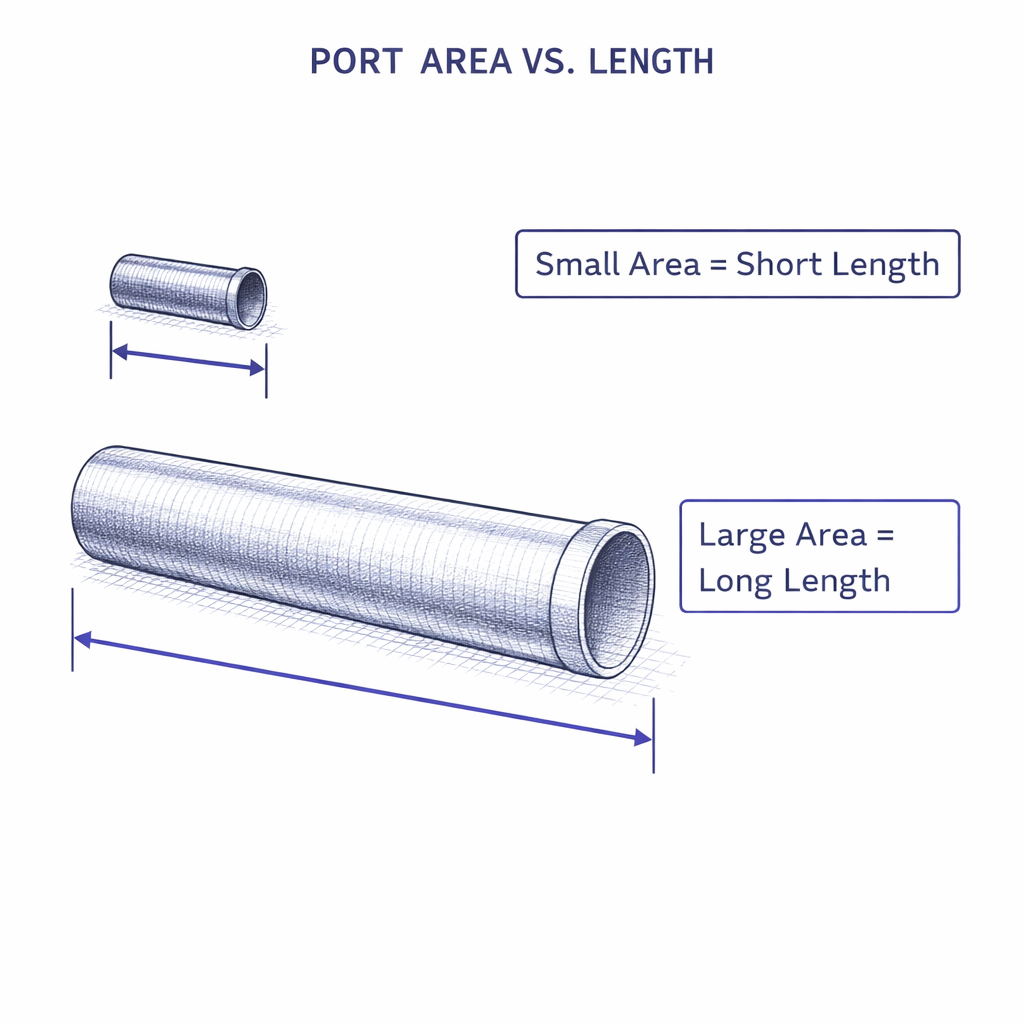

Changing the Port Area
If you make the port wider (larger diameter/area), you must make the port longer to maintain the same tuning frequency. A massive slot port might need to be wrapped around the inside of the box to fit!

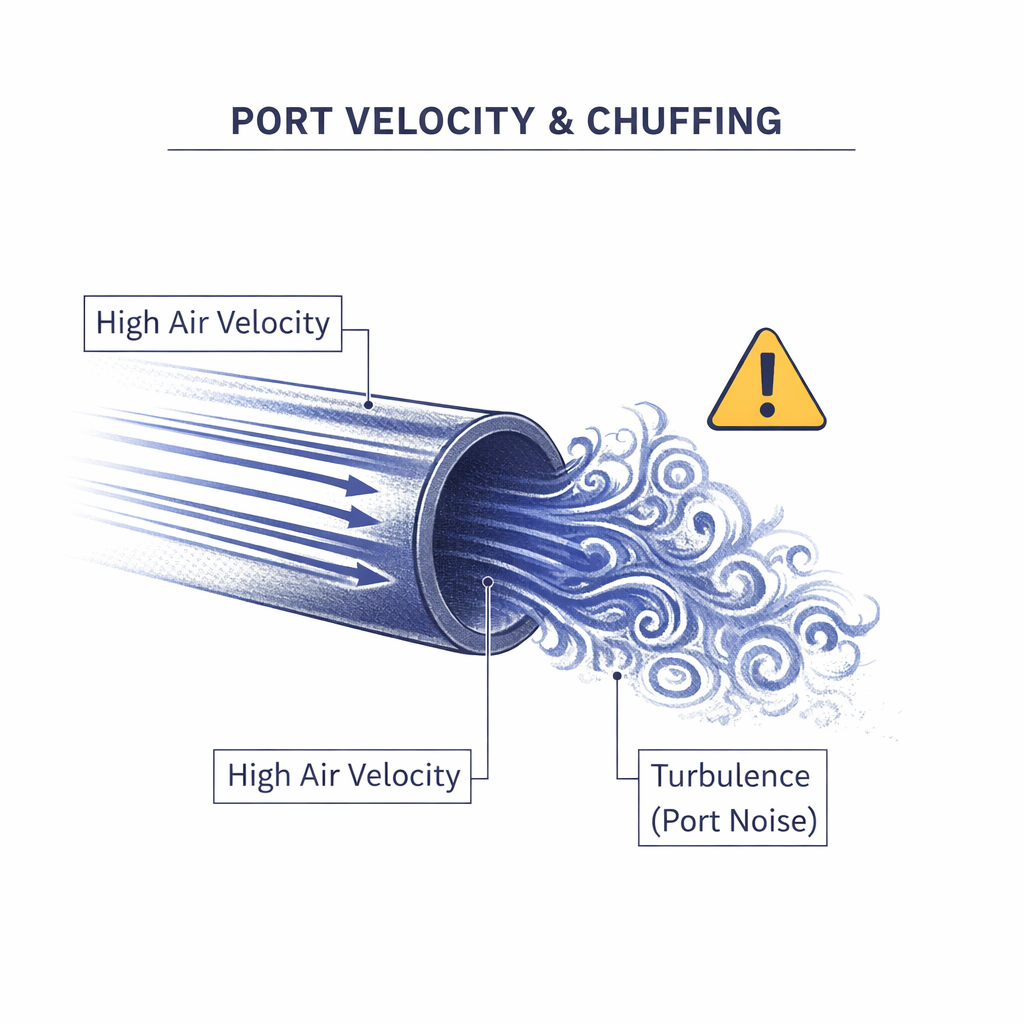

The Danger of Port Noise (Chuffing)
You might think: "I'll just use a very small PVC pipe so the port doesn't have to be long." This is a catastrophic mistake.
When a subwoofer plays loud, it moves a massive amount of air. If you force all that air through a tiny port, the Air Velocity (speed) skyrockets. When air moves too fast through a port, it creates turbulence. This results in a loud, distracting wheezing or whistling sound known as chuffing or port noise, which completely ruins the bass.
Calculate Your Perfect Port
Do not risk port noise. Use our online subwoofer box simulator to model your port air velocity across all frequencies and find the perfect tuning. Once your Fb is locked in, use our speaker box calculator to get the exact wood dimensions for your custom slot port or round tube.
